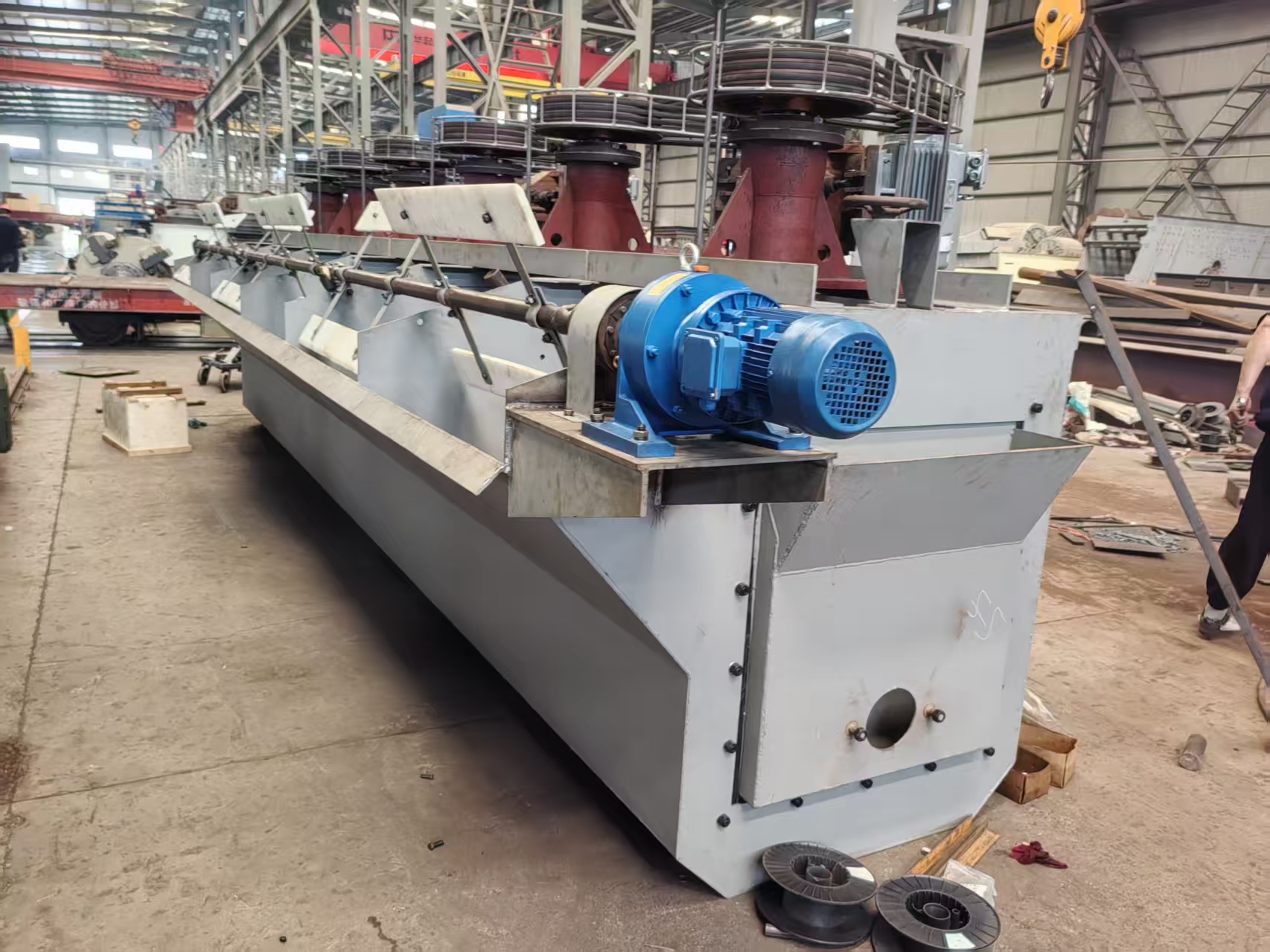

Applications:Flotation machine is widely applied in the separation of ferrous minerals such as iron, non-ferrous metals including copper and gold, as well as non-metallic minerals. It is suitable for roughing, scavenging, and reverse flotation operations in medium and small-scale flotation plants.
Applications:
Flotation machine is widely applied in the separation of ferrous minerals such as iron, non-ferrous metals including copper and gold, as well as non-metallic minerals. It is suitable for roughing, scavenging, and reverse flotation operations in medium and small-scale flotation plants.
Convenient transportation, crawler walking, no damage to the road, equipped with multi-functional accessories, Drived by oil and electricity.
The whole crushing plant adopts all-wheel drive to realize rotating direction in place, with perfect protection function, especially suitable for narrow and complex site.
The crawler crushing plant could be optional for jaw crusher, impatct crusher, cone crusher, VSI crusher etc.
It can work uphill to meet the crushing requirements of mining, hydropower station, coal mine and other projects.
Working Principle
After grinding the ore,add waterand necessary chemicals to the slurry during or after the grinding,and then pour it into the tank to start stirring.Introduce airinto the slurry to form a large number of bubles,some of which are noteasl afocted bywater Wet.thatis,the mineral artclestha are generaly calec hydrophobic atah to the bubles They float together with the bubbles to the surface of the ore slurry to form a layer of mineralized bubbles.Those that are easily wetted by water are generally called hydrophilic mineral particles,which does not adhere to the bubbles but remain in the pulp.The mineralized bubbles containing specific minerals are discharged to achieve the purpose of beneficiation
Lubrication
The main bearing is lubricated by a calcium-based grease with the oil cup twice. The reducer is lubricated by an oil bath with 45# engine oil, and it is changed every six months.
Installation and Debugging
The flotation machine should be installed on a steady concrete foundation that needs leveling with an allowed error of 1/1000 (the feeding side that is higher than the discharging side is required)
The channel for the concrete foundation can be self-designed according to the process line.

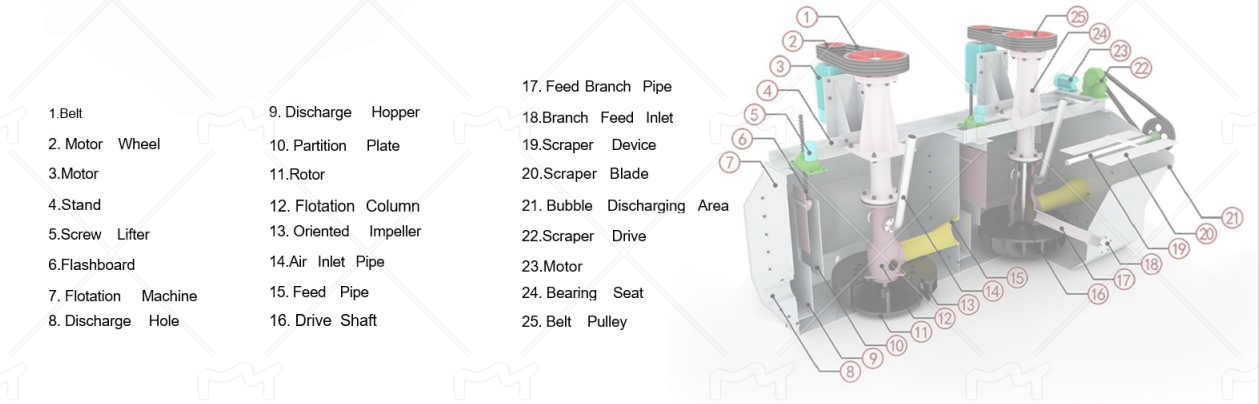

Supply of The Whole-Set of Parts of The Flotation Separator
1. A whole set of mechanical parts
2.Motor
Supply the whole set of parts of the flotation separator
Check the bolts and impellers of every part to make sure that they are not loose at all. Ensure that the triangle wheel and impeller run flexibly.
Check the lubrication in case of oil leaks.
Examine whether the oil pulp is blocked or leaking.
Test whether the adjustment device is flexible and firm.
Guarantee the motor parts are complete, adjustable, and stable.
Make sure the outer rotary device has a solid cover.
Experimental running
Make sure at least 2 hours running test when finishing the installation.
During the running process,the machine must perform flexibly without any noise,friction or vibration.Besides,lubricating parts must be well-sealed,no water leaking,and the bearing temperature should be in the range of 30-60℃
Load Operation
The load test should be done after the normal hollow experiment running.
Requirements:The foam scrape board works normally and turns steadily,same to the impeller.The bearing temperature in the range of 35-65℃
Stop for inspection
The following sectors must be noticed and resolved every time the machine stops.
1. Whether bolts are loose.
2. The wear situation of the impeller and stator.
3. Lubrication of bearings in all parts.
4. Whether all pipes are unobstructed.
5. Whether the electrical circuits and facilities are safe, reliable, and free from leakage.
*The output will vary according to different materials, feed particle size and other factors
